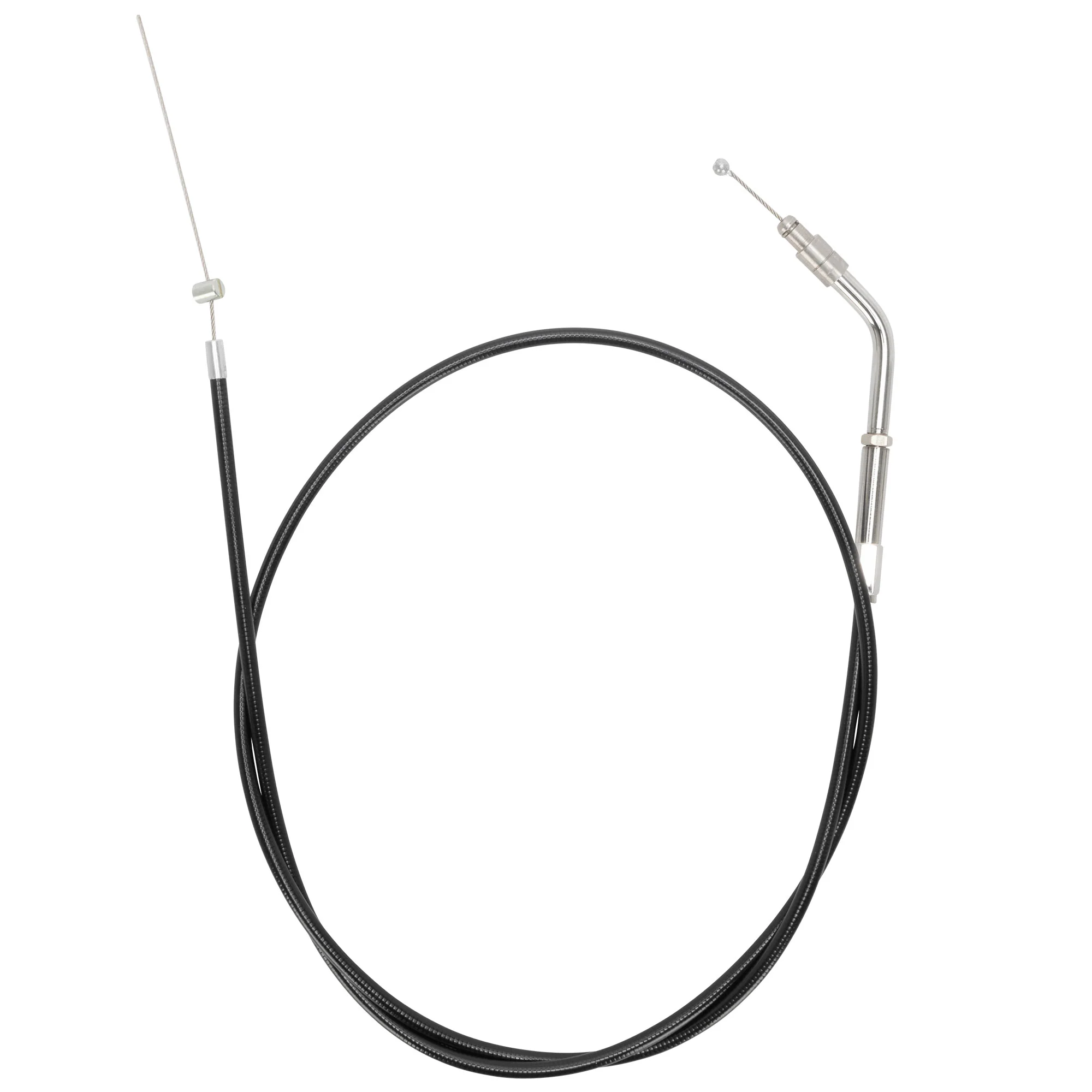

"Super Prism" Throttle Cable for Prism Throttle Assemblies - 40 inch
- Specially set up for the "Super Prism" Throttle Assembly
- Manufactured by Barnett
- Stock cable length is 30"
- Comes with cable stop and lube
| THROTTLE & IDLE CABLE MEASUREMENTS | |
| Cable End Type | Push In |
| Elbow Length |
4-1/4" |
| Elbow Angle |
45 degree |
| Housing Length |
40" |
| Free Play | 5" |
 |
|
|
THROTTLE & IDLE CABLE MEASUREMENT DEFINITIONS See the example diagram above to see how this cable is measured. Note that the diagram is just an example, and is not a drawing of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances. Elbow Length: Overall length of elbow section, if there is one. Elbow Angle: 45 degree, 90 degree, or N/A (no elbow) Housing Length: Overall length of cable housing, not including adjuster or elbow. Measurement stops at elbow where black housing meets chrome. Free Play: The full amount of travel of the inner cable. Pull inner cable fully to one side, measure length, not including cable end (ferrule) or return spring. |
|
